Key Features

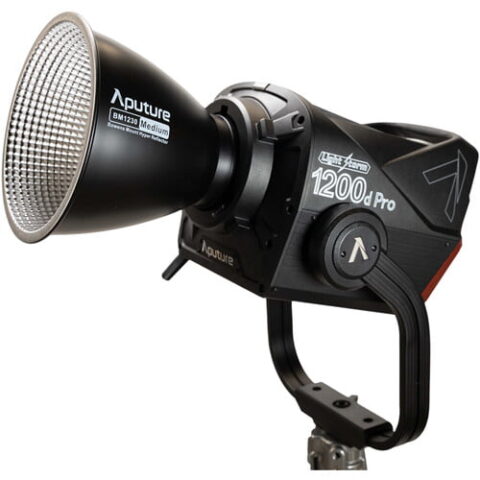

- LS 1200d Pro LED Light
- Comparable to 1600W HMI
- LS 1200 Series Reflector Kit
- Narrow, Medium, and Wide Beam Angles
| Item Type | 1 x LED Monolight |
| Included Light Modifier | 3 x Reflector |
| Included Storage Case | 1 x Case |
| Photometrics | 66° at 5600K: 5334 fc / 57,420 Lux at 3.3′ / 1 m* 592 fc / 6380 Lux at 9.8′ / 3 m 260 fc / 2802 Lux at 16.4′ / 5 m 15° at 5600K: 69,479 fc / 747,900 Lux at 3.3′ / 1 m (with Reflector)* 7719 fc / 83,100 Lux at 9.8′ / 3 m (with Reflector) 2632 fc / 28,340 Lux at 16.4′ / 5 m (with Reflector) 30° at 5600K: 18,728 fc / 201,600 Lux at 3.3′ / 1 m (with Reflector)* 2080 fc / 22,400 Lux at 9.8′ / 3 m (with Reflector) 761 fc / 8200 Lux at 16.4′ / 5 m (with Reflector) 45° at 5600K: 10,877 fc / 117,090 Lux at 3.3′ / 1 m (with Reflector)* 1208 fc / 13,010 Lux at 9.8′ / 3 m (with Reflector) 445 fc / 4800 Lux at 16.4′ / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest DistanceShow Less |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 95 TLCI 95 CQS 96 |
| Dimming | Controller Included (Continuous) • 0.1 to 100% |
| Beam Angle | 66° Unmodified 15° with Included Reflector 30° with Included Reflector 45° with Included Reflector |
| Front Accessory Mount | Bowens S |
| Wireless Remote Control Type | Bluetooth Wi-Fi Wireless CRMX Wireless DMX |
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 96 VDC |
| Power Consumption | 1440 W |
| Fixture Mounting | 1 x 1-1/8″ Stud |
Light Fixture
| Item Type | 1 x LED Monolight |
| Included Light Modifier | 3 x Reflector |
| Included Storage Case | 1 x Case |
| Photometrics | 66° at 5600K: 5334 fc / 57,420 Lux at 3.3′ / 1 m* 592 fc / 6380 Lux at 9.8′ / 3 m 260 fc / 2802 Lux at 16.4′ / 5 m 15° at 5600K: 69,479 fc / 747,900 Lux at 3.3′ / 1 m (with Reflector)* 7719 fc / 83,100 Lux at 9.8′ / 3 m (with Reflector) 2632 fc / 28,340 Lux at 16.4′ / 5 m (with Reflector) 30° at 5600K: 18,728 fc / 201,600 Lux at 3.3′ / 1 m (with Reflector)* 2080 fc / 22,400 Lux at 9.8′ / 3 m (with Reflector) 761 fc / 8200 Lux at 16.4′ / 5 m (with Reflector) 45° at 5600K: 10,877 fc / 117,090 Lux at 3.3′ / 1 m (with Reflector)* 1208 fc / 13,010 Lux at 9.8′ / 3 m (with Reflector) 445 fc / 4800 Lux at 16.4′ / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 95 TLCI 95 CQS 96 |
| Cooling System | Fan |
| Dimming | Controller Included (Continuous) • 0.1 to 100% |
| Beam Angle | 66° Unmodified 15° with Included Reflector 30° with Included Reflector 45° with Included Reflector |
| Front Accessory Mount | Bowens S |
Connectivity
| Wireless Remote Control Type | Bluetooth Wi-Fi Wireless CRMX Wireless DMX |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Power & I/O
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| Inputs/Outputs | Light Fixture 1 x Proprietary Power Input Power Supply/Controller 1 x powerCON TRUE1 TOP Power Input 2 x XLR 3-Pin Power Input 1 x Proprietary Power Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 96 VDC |
| Included Adapter / Cable | 1 x Edison Plug to powerCON TRUE1 TOP Cable (19.7′ / 6 m) 1 x Proprietary to Proprietary Cable (9.8′ / 3 m) |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 1440 W |
Mounting
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1 x 1-1/8″ Stud |
General
| Display | No |
| Dimensions | 13.08 x 9.12 x 8.52″ / 33.23 x 23.16 x 21.63 cm (Fixture) 21.4 x 13.08 x 13.04″ / 54.35 x 33.23 x 33.12 cm (Fixture with Yoke) |
| Weight | 19.73 lb / 8.95 kg (Fixture with Yoke) |
