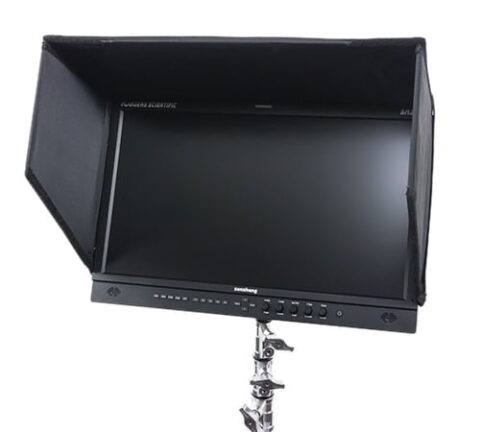

Moniteur 21" Flanders BM210

Ce moniteur de diffusion multi-formats est livré avec des entrées 3G / Dual-Link / HD / SD-SDI, composantes, composites et DVI-I. Comme tous les moniteurs de la série BM, cet appareil dispose d'un traitement vidéo complet de 12 bits et d'un panneau natif de résolution de 1920 x 1080 de 8 bits capable de reproduire plus de 16,7 millions de couleurs à l'écran. Le BM210 offre un support pour pratiquement n'importe quel format de signal de NTSC / PAL à HD et 2K, y compris les formats avancés de signal 12 bits, 4: 4: 4 et XYZ.


Support pour pied 750

he Flanders Scientific BM210 is a lightweight 21.5" Multi-Format broadcast monitor with 3G/Dual-Link/HD/SD-SDI, Component, Composite, & DVI-I Inputs. Like all BM series monitors this unit features full 12-bit video processing and a native 1920x1080 resolution 8-bit panel capable of reproducing over 16.7 million colors on screen.

The BM210 offers support for virtually any signal format from NTSC/PAL to HD and 2K, including advanced 12-bit, 4:4:4, and XYZ signal formats. This unit features many broadcast monitor basics like a Blue Only Mode, Monochrome Mode, Markers, Safety Areas, H/V Delay, and Tally Lights. Like all Flanders Scientific monitors the BM210 also comes standard with advanced features like 16 Selectable Scopes, Focus Assist, Time Code Display, Audio Disembedding, Artifact Free Pixel Zoom, Adjustable Exposure Check, On-screen Alarms, and Advanced Pixel Level Measurement.

This unit also provides additional advanced capabilities including live side-by-side monitoring of 2 inputs and dual LUT import capabilities (both DIT LUTs and calibration LUTs.) CFE2 Color Fidelity Engine Color space management is handled by the FSI CFE2 Color Fidelity Engine. This advanced second generation 3D LUT processor ensures a high degree of accuracy in any color space mode. Select between Rec 709, EBU, SMPTE-C, DCI P3 Emulation, Native Wide Gamut, and Custom User Generated color spaces. CFE2 supports custom calibration LUTs as well as DIT LUTs that do not require profiling of the panel with a probe before import (e.g. BlackMagic Design Film Mode to Rec 709 LUT, LogC to Rec 709 LUT, etc. In addition to the CFE2 capabilities the monitor comes equipped with instantly selectable gamma, peak luminance, and color temperature presets, adding to the flexibility of this unit and making it suitable for a wide variety of applications and environments. Like all FSI monitors the BM210 comes pre-calibrated from the factory.

The BM210 also features a wide variety of manual calibration toggles, interfaces with FSI’s Direct Connect Automatic Alignment System, and is also compatible with advanced color management systems like LightIllusion’s LightSpace CMS or SpectraCal’s CalMan allowing you to choose the color management option that works best for you. Live Side by Side Monitoring (Picture and Picture) The BM210 is equipped with 2 x 3Gbps SDI (SMPTE 425M-AB) & Dual-Link SDI (SMPTE 372M) inputs, provide support for advanced formats including 4:4:4 RGB, 4:4:4 YCbCr, and 4:4:4 XYZ signals. With support of both Level A and Level B 3Gbps SDI the CM250 is compatible with virtually all 3Gbps SDI sources and provides many advanced viewing modes for multiplexed (2x SMPTE 292M) Level B signals as explained here. The unique live side-by-side monitoring feature allows for mixed formats, mixed frame rates, and even mixed input types to be viewed together.

At just 9 lbs and 28 Watts power consumption the BM210 is incredibly well suited as a field monitor with lower weight and power consumption than many 17” monitors on the market. The monitor can be powered via AC (100~240VAC) or DC (V-mount or 12V 4 PIN XLR) connectors. The BM210 has been built specifically as FSI’s affordable do everything monitor. The BM210 represents one of the best values in our lineup and you simply won’t find anything else comparable at this price on the market.
