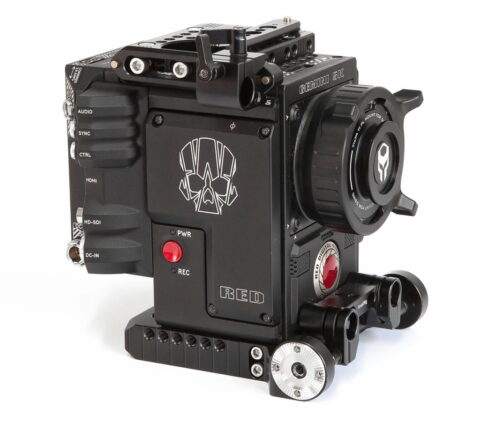

DSMC2 brain avec geminit 5k s35 red-7100305
DSMC2 red evf (oled) avec pack de montage red-7300020
DSMC2 red touch 4.7′ lcd red-7300019
DSMC2 Base expander RED-7200033
dsmc2 gold mount battery modaule red-7200053
red station red mini-mag – usb 3.1 red-7500084
3 x red mini-mag 480gb red-7500090
2 x Tilta pogo to pogo extansion cable REL-02
Tilta Red PL-mount (alliage de titane) avec étui de sécurité TT-RPM001
4x Shape full play 14.8V 135 WH batterie rechargeable lithium-ion gold-mount G135TS
Shape full play intelligent 4-channel gold-mount lithium-ion battery charger avec fil d’alimentation G4CHA
2x Shape Compact Quick handle arri rosette black avec 2x vis d’attache HAND15
SmallRig Arri Baseplate pour RED DSMC2 1998
SmallRig Standard Arri Dovetail 1501
SMALLRIG Plaque supérieure Red Raven 1748
SMALLRIG Rail NATO Quick Release (10cm) 1134
SMALLRIG Rail OTAN de sécurité (93mm) 1933
2x Tiges smallrig 8 pouces
2x Tiges smallrig 6 pouces
2x Tiges smallrig 4 pouces
SMALLRIG Safety NATO Rail with 15mm Rod Clamp 1856 (pour viseur)
15mm Cheese Rod(M12-125mm) 1457 (pour moniteur)
RailBlock 15mm super léger 3 942 (pour moniteur)
1x SmallRig SWAT Nato Rail avec 15mm Rod Clamp (Parallel) 1254
4x SmallRig 15mm Rod Cap (M12) 1617
SmallRig Safety NATO Rail avec 15mm Rod Clamp 1856
1x RED tool tork t-20
2x clé allen
Option :
Monture Revolva EF seule + étui REV-EF-M
Revolva cartouche S (ND 0, 0.6, 1.2, 2.1) REV-CART-S
SENSOR TYPE | GEMINI 15.4 Megapixel Dual Sensitivity CMOS |
---|---|
EFFECTIVE PIXELS | 5120 x 3000 |
SENSOR SIZE | 30.72 mm x 18.0 mm (Diagonal: 35.61 mm) |
DYNAMIC RANGE | 16.5+ stops |
MAX DATA RATES | Up to 300 MB/s using RED MINI-MAG (480GB & 960GB) Up to 225 MB/s using RED MINI-MAG (120GB & 240GB) |
MAX FRAME RATES 1 | 75 fps at 5K Full Height 1.7:1 (5120 x 3000) 96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160) 120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728) 150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296) 240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864) |
PLAYBACK FRAME RATES (PROJECT TIMEBASE) |
23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions |
REDCODE SETTINGS RANGE FROM 2:1 UP TO 22:11 |
3:1 REDCODE at 5K Full Height (5120 x 3000) and 24 fps 6:1 REDCODE at 5K Full Height (5120 x 3000) and 60 fps 2:1 REDCODE at 5K Full Format (5120 x 2700) and 24 fps 8:1 REDCODE at 5K Full Format (5120 x 2700) and 96 fps 2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps 6:1 REDCODE at 4K Full Format (4096 x 2160) and 120 fps |
REDCODE RAW ACQUISITION FORMATS2 |
5K Full Height 1.7:1 (5120 × 3000), 5K Full Height 6:5 (3600 × 3000), and Ana 2x, 1.3x 5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x |
APPLE PRORES | ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 30 fps ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps |
AVID CODECS3 | DNxHR HQX at 4K (4096 × 2160) 12-bit up to 30 fps DNxHR HQ and SQ at 4K (4096 × 2160) 8-bit up to 30 fps DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps DNxHR HQ and SQ at 2K (2048 × 1080) 8-bit up to 120 fps DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps DNxHD HQ and SQ (1920 × 1080) 8-bit up to 120 fps |
CONSTRUCTION | Aluminum Alloy |
WEIGHT | 3.35 lbs (BRAIN with Integrated Media Bay) |
OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
RELATIVE HUMIDITY | 0% to 85% non-condensing |
AUDIO | Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz |
REMOTE CONTROL | Integrated R.C.P. WiFi antenna Ethernet, RS232, and GPI Trigger with DSMC2 expander module |
MONITOR OUTPUTS | 3G-SDI (HD-SDI) and HDMI with DSMC2 expander module 1080p RGB or 4:2:2, 720p RGB or 4:2:2 480p RGB or 4:2:2 (HDMI only) SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
MONITOR OPTIONS | DSMC2® Touch 7.0″ Ultra-Brite LCD (Direct Mount), DSMC2® RED Touch 4.7″ LCD, DSMC2® RED Touch 7.0″ LCD and DSMC2® RED EVF (OLED) with cable-free connection. RED Touch 9.0″ LCD, RED Touch 7.0″ LCD, RED Touch 5.0″ LCD, RED PRO 7″ LCD, DSMC2 Touch 7.0″ Ultra-Brite LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LCD/EVF Adaptor A or DSMC2 LCD/EVF Adaptor D, and LCD/EVF cable. |
REDCINE-X PRO DELIVERY FORMATS |
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin) 2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin) 1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF 1080p 4:2:0, 720p 4:2:0 : H.264, .MP4 |
VIDEO EDITING SOFTWARE COMPATIBILITY4 |
Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro |
