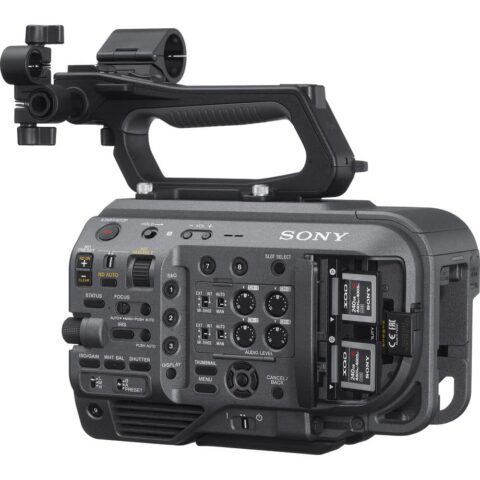

Sony PXW-FX9 E-Mount Specs
Image Sensor
Image Sensor Size | 35.7 x 18.8 mm (Full-Frame) |
Sensor Type | CMOS |
Sensor Resolution | Effective: 3840 x 2160 |
ISO | 800 to 4000 (Native) |
Gain | -3 to 18 dB |
Advertised Dynamic Range | 15 Stops |
Signal-to-Noise Ratio | 57 dB |
Camera
Lens Mount | Sony E-Mount |
Shutter Speed | 1/1 to 1/8000 sec |
Built-In ND Filter | 4 to 128 Stop Electronic ND Filter |
Built-In Microphone Type | Mono |
Recording Media | 2 x XQD Card Slots 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot |
Internal Recording
Recording Modes | XAVC-I 4:2:2 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps (89 to 222 Mb/s) 1920 x 1080i at 50/59.94 fps (112 Mb/s) XAVC-L 4:2:2 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s) 1920 x 1080p at 25/29.97/50/59.94/100/120 fps (25 to 50 Mb/s) 1920 x 1080i at 50/59.94 fps (50 Mb/s) MPEG HD422 4:2:2 10-Bit: 1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s) 1920 x 1080i at 25/50/59.94 fps (50 Mb/s) XAVC Proxy 4:2:0 10-Bit: 1920 x 1080p (9 Mb/s) 1280 x 720p (6 to 9 Mb/s) 640 x 360p (3 Mb/s) |
Gamma Curve | Sony S-Log 3 |
Audio Recording | XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio Proxy: 2-Channel AAC Audio |
Interfaces
Video Connectors | 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x HDMI (HDMI 2.0) Output |
Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8″ / 3.5 mm Stereo Headphone Output |
Other I/O | 1 x BNC Genlock Data Input 1 x BNC Timecode Data Input/Output 1 x 2.5 mm LANC Control 1 x USB Micro-B USB 3.1 Gen 1 Data |
Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi |
EVF
EVF | Included |
EVF Display Type | LCD |
Screen Size | 3.5″ |
EVF Resolution | 2,760,000 Dots |
Power
Battery Type | Sony BP-U Series |
Power Connectors | 1 x Barrel (19.5 VDC) Input |
Power Consumption | 35.2 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Accessory Mount | 1 x Multi-Interface Shoe 1 x 1/4″-20 Female |
Dimensions | 5.75 x 5.61 x 9.02″ / 146 x 142.5 x 229 mm (Without Protrusions) |
Weight | 4.4 lb / 2 kg |
